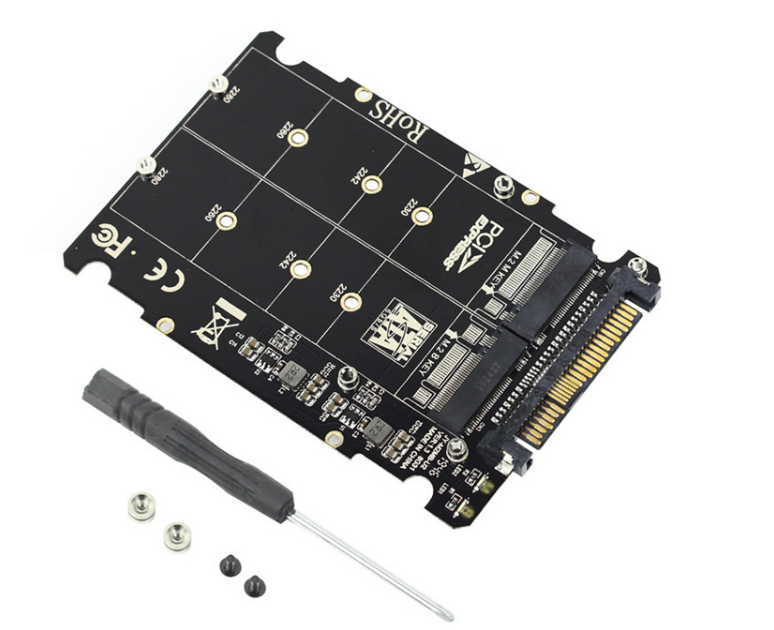

The M.2 to U.2 for NVMe SSD adapter is a 2.5-inch multifunctional SSD card, which can support an M.2 Key B SATA protocol SSD or an M.2 Key M NVMe protocol SSD.
U.2 to M.2 NVMe SSD ADAPTER Extend Board
M.2 B-KEY 2280
M.2 M-KEY 2280
Overview
The speed and other properties are not changed, only from the conversion interface.
M.2 B-KEY or M.2 M-KEY to U.2 adapter for M.2 NVME SSD.
2-IN-1 extend card, 2 x M.2 (NVME / SATA) adapter can work at the same time.
FEATURES
Product Type: U.2 to NVMe SSD adapter
Media interface:
1 x M.2 Key B Connector
1 x M.2 Key M Connector
1 x SATA (7+15Pin) interface
M.2 NVMe SSD size: 2230, 2242, 2260, 2280mm
Industrial working temperature range: -40 ~ 85 ° C
Operating system: Windows, MAC OS, Linux operating system
No driver required, the driver is transparent to the operating system
NOTE
When installing, please make sure that the motherboard is turned off during operation.
